Beschrijving
Hobbyisten tool; DuoLABS PLUS versie van de CAS interface 3. De CAS 3 PLUS is een complete set verpakking, compleet nieuwe hardware en mogelijkheden. Levering exclusief CI module(n) en (oude) J-cards worden niet meer meegeleverd.

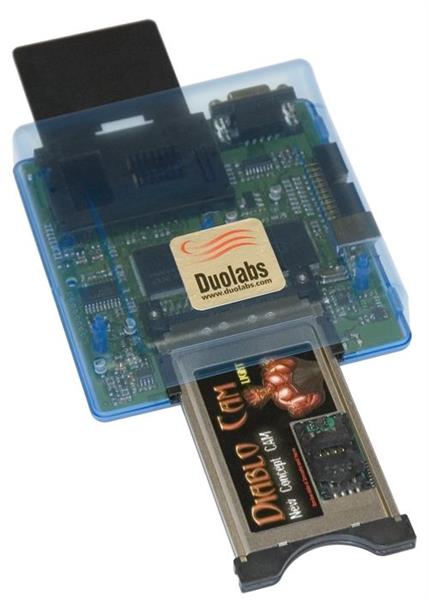

DuoLABS CAS 3 PLUS interface
DuoLABS PLUS versie van de CAS interface 3. De CAS 3 PLUS is een complete setverpakking, compleet nieuwe hardware en mogelijkheden.
CAM Programmer
Yet again Duolabs strike back with another ground breaking device. The Cas Interface 3 (discontinued) and Cas Interface 3 Plus (from 2006).
In a single product, the CAS Interface 3, combines all the superb features of the CAS Interface 2, its Add-On Board plus many additional options.
This new release offers very advanced technical features. Unlike the CAS Interface 2, the CAS Interface 3 can fully manage PCMCIA connectors and easily connect external additional modules. However, the most interesting feature is the possibility of being able to emulate the PCMCIA port of a Common Interface (EN50221) receiver and thus use a Cam directly as if it were inserted in a receiver.
Consequently the CAS Interface 3 can also be used by professionals to test a CAM (Conditional Access Module) without inserting it in a receiver. CAS Interface 3 also enables users to manage and program several types of SmartCard, which includes both current ones and those yet to be developed.
Therefore the CAS Interface 3 can be regarded as a multifunction programmer suitable for the management of J-Tag, ISP, I2C, etc., through a USB port.
All features are explained in the User Manual available to download from our site. The CAS Interface 3 will be available through our official distributors and via our online shop.
The Kit supplied with CAS Interface 3 comprises of:
• 1x CAS Interface 3 Plus
• 1x 20-Pin female cable, length 30 cm
• 0x J-Card - no longer included
• 1x Dummy Card
Technical Information:
The main features of this great device are as follows:
• RS-232 Serial Connection
• 20 Pin External Connector
• Internal Clock Speed 48Mhz
• No need for external power supply
• Full PCMCIA connector support
• CAS Studio user friendly GUI
Supported Common Access Modules (CAM):
• Diablo CAM. Cas Interface 3 together with Cas Interface 2 are the only programmers which are supporting the Diablo CAM Light, Diablo CAM Wireless and Diablo CAM WiFi programming. The programming for this device is very quick and reliable. Simply insert the CAM in the Cas Interface and choose the file you want to load in.
• Magic Cam, Matrix Cam, Matrix Revolution, Matrix Reloaded, Matrix Reborn, and all CAMs based on SIDSA chipsets, which can be managed directly by means of a PCMCIA connector. For a full list of supported modules, open the Graphics Menu of Cas Studio. Remember to download the latest release from our web site.
Thanks to the High Speed internal clock Cas Interface 3 is around 4 times faster than Cas Interface 2. Most of software routines for Flash writing have been rewritten. • Joker Cam, Zeta Cam and substantially all CAM modules based on NEOTION chipsets. These modules can be programmed and repaired using a J-Card. For a full list of supported modules, open the Graphics Menu of Cas Studio. Remember to download the latest release from www.duolabs.com.
• Dragon Cam. It is possible to program any v
